Thermal Transfer Ribbon

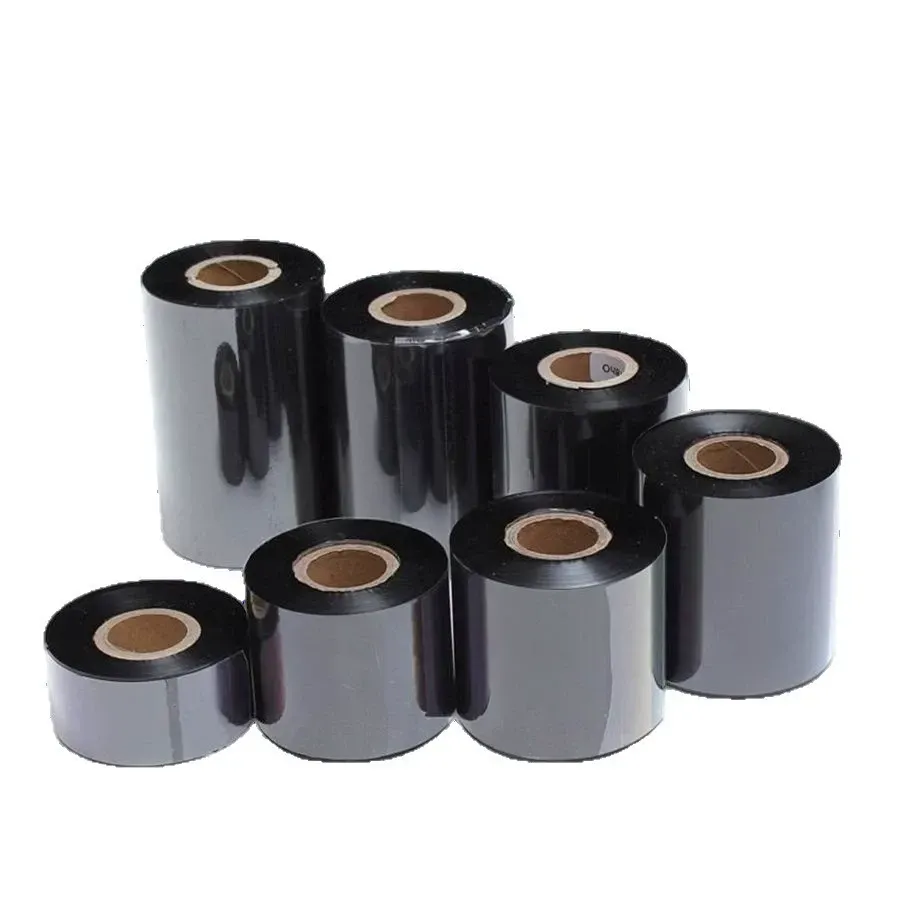

Resin Ribbon – Extreme Durability for Harsh Environments
Premium resin thermal transfer ribbon designed for printing on synthetic labels (PET, PI, PP, PE) that require superior resistance to heat, chemicals, and abrasion. Ensures barcode readability in outdoor, industrial, and cryogenic conditions.
Specifications
- Color
- Black (standard)
- Width
- 40-110mm
- Length
- 300m, 450m, 600m per roll
- Core diameter
- 1" or 0.5"
- Print density
- High (≥1.8 OD)
Detailed Specifications
Color | Black (standard); other colors on request |
Width | 40mm, 50mm, 60mm, 70mm, 80mm, 90mm, 110mm (custom) |
Length | 300m, 450m, 600m per roll |
Core diameter | 1 inch (25.4mm) or 0.5 inch |
Coating side | Outside / Inside (printer dependent) |
Print density | High (≥1.8 OD) |
Recommended printers | Zebra, Honeywell, Sato, TSC, Citizen |

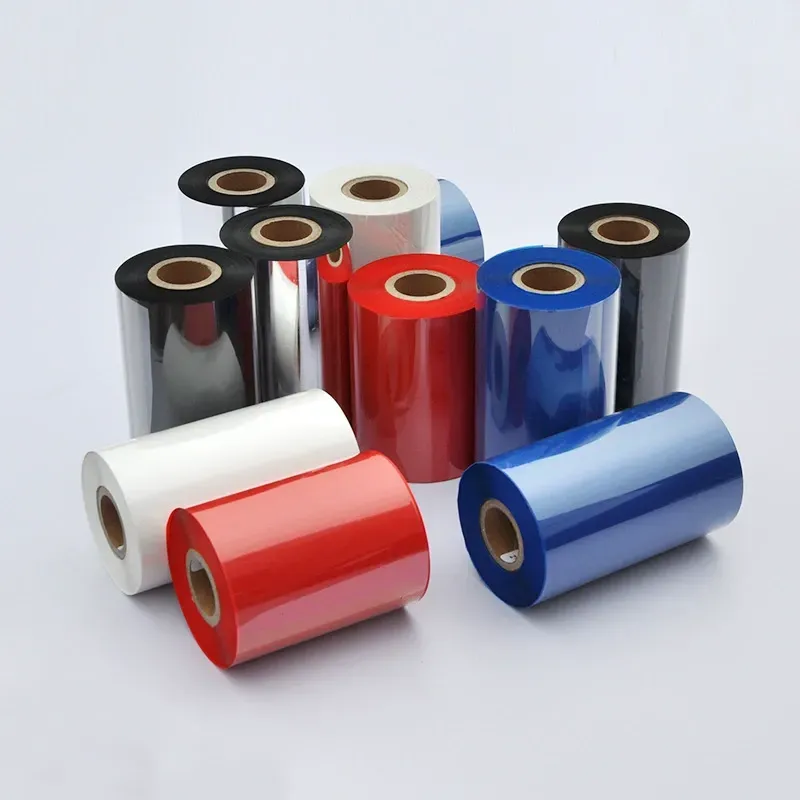

Custom sizes and colors (blue, red, white, etc.) available upon request.
Key Features
- Extreme chemical resistance – Withstands acetone, toluene, MEK, alcohols, and acids.
- High thermal stability – Prints remain legible from -40°C up to 150°C after transfer.
- Superior abrasion & scratch resistance – Ideal for rough handling, outdoor use, and automated scanning.
- Excellent adhesion – Bonds permanently to PET, PI, PP, PE, and even some metal/glass surfaces.
- High print definition – Supports fine text, small barcodes (2D, QR), and graphics.
- Long printhead life – Formulated to minimize wear on thermal printheads.
Applications
Use Resin Ribbon for:
- PCB & electronics – Tracking labels that survive reflow soldering (paired with PI labels).
- Chemical drums & containers – Labels that won't lift or smear after solvent exposure.
- Liquid nitrogen & cryo – Barcodes that stay readable on -196°C cryo‑vials.
- Outdoor assets & automotive – Engine compartments, fuel tanks, and UV‑exposed equipment.
- Clean rooms & ESD environments – Low outgassing, anti‑static options available.
Printer & Label Compatibility
Recommended label materials:
- Polyimide (PI) – best for high‑temperature reflow
- PET (white, silver, clear) – excellent chemical resistance
- PP (synthetic paper) – good durability
- PE (film) – test recommended
- Coated paper (short‑term indoor use only)
Compatible printers:
Most industrial thermal transfer printers from Zebra (ZT series, GK series, ZQ series), Honeywell (PD45, PM45), Sato (CL, GL), TSC (Alpha, MH), Citizen (CL series).
Printer settings suggestion:
- Darkness: 25–30% (higher than wax/resin)
- Speed: 2–4 inches per second (ips) for best adhesion and density
⚠️ Note: Resin ribbon requires higher print energy. Always test on your specific printer and label combination.
How to Choose the Right Width & Length
- Width: Ribbon must be slightly wider than the label (e.g., label 50mm → ribbon 60mm). This prevents printhead damage from adhesive residue on label edges.
- Length:
- 300m – small to medium volume
- 450m – standard industrial rolls
- 600m – high‑volume automated printers (check printer capacity)
- Core:
- 1 inch core – most common for industrial printers
- 0.5 inch core – some desktop models (e.g., Zebra GK series)
- Coating side:
- Outside (ink faces out) – standard for Zebra, Honeywell, Sato
- Inside (ink faces in) – for some Datamax, Intermec models If unsure, we can determine from your printer model.
Ordering & Sample Information
- MOQ: 50 roll for standard sizes (widths 40–110mm, length 300m).
- Free sample: 1‑meter sample available for testing. Request with your printer model and label material.
- Custom sizes: Non‑standard widths or lengths – MOQ 100 rolls.
- Colored ribbons (red, blue, white): MOQ 200 rolls.
- Lead time:
- Stock sizes: 2–3 business days
- Custom sizes: 10–15 business days
- Large volume (>500 rolls): 20–25 days
