Thermal Transfer Ribbon

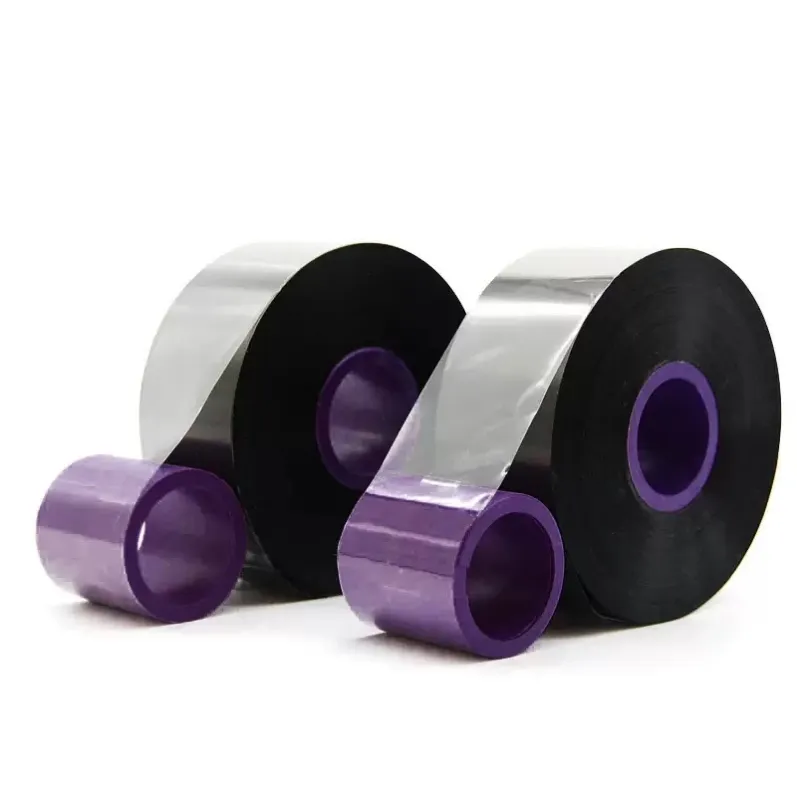

Near Edge Ribbon for TTO – High-Speed, High-Durability Printing
Premium near edge thermal transfer ribbon specifically formulated for TTO (Thermal Transfer Overprinters) systems. Enables high-speed printing up to 600mm/s with exceptional scratch resistance, sharp barcodes, and durable images on flexible packaging films.
Specifications
- Ribbon type
- Near Edge – wax/resin (low energy) and resin (high durability)
- Width
- 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 55mm, 75mm, 85mm, 110mm
- Length
- 300m, 450m, 600m per roll
Near Edge Ribbon for TTO – High-Speed, High-Durability Printing
Premium near edge thermal transfer ribbon specifically formulated for TTO (Thermal Transfer Overprinters) systems. Enables high-speed printing up to 600mm/s with exceptional scratch resistance, sharp barcodes, and durable images on flexible packaging films.
Specifications
Item | Details |
|---|---|
Ribbon type | Near Edge – wax/resin (low energy) and resin (high durability) |
Width | 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 55mm, 75mm, 85mm, 110mm |
Length | 300m, 450m, 600m per roll |
Core diameter | 1 inch (25.4mm) |
Coating side | Outside (ink faces out) – Near Edge configuration |
Print speed | Up to 600mm/s (wax/resin), 400mm/s (resin) |
Print density | High (≥1.8 OD) |
Compatible TTO printers | Zebra, SATO, Markem-Imaje, Videojet, Domino, and OEM TTO systems |
Certifications | RoHS, REACH, Halogen‑free, food‑contact compliant (FDA) |
Custom sizes and colours available upon request. Resin-grade near edge ribbon for extreme chemical/heat exposure also offered.
Key Features
- ✅ Near edge compatibility – Formulated specifically for near edge printhead technology used in TTO systems.
- ✅ High-speed printing – Supports speeds up to 600mm/s (wax/resin) without sacrificing print quality.
- ✅ Superior scratch & smear resistance – Images resist rubbing and abrasion during handling and transport.
- ✅ Sharp, high-density barcodes – Optimised for small barcodes, use-by dates, and batch codes on flexible packaging.
- ✅ Excellent adhesion – Bonds to PE, PP, PET films, coated paper, and laminates.
- ✅ Food-contact compliant – FDA-compliant for indirect food contact – ideal for food packaging.
- ✅ Low energy requirement – Wax/resin grade runs at lower energy, extending printhead life.
- ✅ High energy density – Resin grade delivers maximum durability for harsh environments.
Applications
Use Near Edge Ribbon for TTO in:
- Food packaging – Use-by dates, batch codes, barcodes on flexible films (PE, PP, laminates).
- Pharmaceutical packaging – Serialisation codes, lot numbers, expiry dates on blister packs and sachets.
- Beverage labelling – High-speed date coding on shrink sleeves and flexible pouches.
- Cosmetics & personal care – Print variable data on tubes, sachets, and flexible packaging.
- Industrial labels – High-speed printing of barcodes and text on synthetic labels.
- E‑commerce packaging – Shipping labels and variable data on poly bags and mailers.
For standard label printing, consider our wax/resin ribbon or resin ribbon for edge printheads.
Printer & Ribbon Compatibility
Compatible TTO Printers:
- Zebra – ZXP Series, ZT Series (near edge models)
- SATO – CT4-LX, CL Series (near edge configuration)
- Markem-Imaje – 2200 Series, 2300 Series
- Videojet – DataFlex Plus, 6230
- Domino – Vx Series
- OEM systems – Built-in TTO modules for packaging lines
Printer settings suggestion:
- Near Edge Printers (TTO):
- Darkness: 20–25% (wax/resin), 25–30% (resin)
- Speed: 400–600mm/s (wax/resin), 200–400mm/s (resin)
- Edge Printers (Standard):
- Darkness: 18–22% (wax/resin), 22–26% (resin)
- Speed: 100–300mm/s
⚠️ Important: Near edge ribbon must be used with near edge printheads. Using flat/edge ribbon on near edge printers will result in poor transfer and premature printhead wear. If unsure about your printer type, <u>contact our technical support</u>.
How to Choose the Right Near Edge Ribbon
1. Ribbon Type Selection
Ribbon Type | Best for | Speed | Durability |
|---|---|---|---|
Near Edge Wax/Resin | High-speed, good scratch resistance, moderate durability | Up to 600mm/s | Medium |
Near Edge Resin | Maximum durability, chemical resistance, harsh environments | Up to 400mm/s | High |
Decision guide:
- ✅ Need high speed (>400mm/s) + good print quality? → Near Edge Wax/Resin
- ✅ Need extreme durability + chemical resistance? → Near Edge Resin
- ✅ Need both? → Evaluate speed vs. durability trade-off.
2. Width & length selection
- Width: Choose ribbon width that matches or slightly exceeds the print width.
- Length: 300m for small/medium volume; 450m for standard industrial use; 600m for high‑volume automated lines.
- Core: 1 inch core standard for all TTO systems.
3. Food contact compliance
- All our near edge ribbons are FDA-compliant for indirect food contact.
- For direct food contact, please specify – we offer specialised grades.
Ordering & Sample Information
- MOQ: 50 rolls for standard widths (wax/resin); 10 rolls (resin).
- Free sample: 10‑meter sample available for testing. Request with your TTO printer model, label/film material, and speed requirements.
- Custom colours: Available on request – MOQ 100 rolls.
- Lead time:
- Stock sizes: 2–3 business days
- Custom sizes: 10–15 business days
- Large volume (>100 rolls): 20–25 days
