Anti-Static ESD Label – Static‑Dissipative for Electronics Clean Rooms
Premium ESD‑safe label designed to prevent electrostatic discharge damage in sensitive electronics assembly. Static‑dissipative surface (10⁶–10⁹ Ω/sq) and antistatic adhesive ensure safe application on PCBs, components, and ESD‑protected areas.
Specifications
- Material
- Polyester (PET) with static‑dissipative coating
- Color
- White, blue, or custom (typically light blue for ESD visibility)
- Standard sizes
- Custom die‑cut from 5mm x 5mm to 150mm x 100mm
- Core diameter
- 1 inch
Detailed Specifications
Material | Polyester (PET) with static‑dissipative coating |
Surface resistivity | 10⁶ – 10⁹ Ω/sq (ANSI/ESD S20.20 compliant) |
Color | White, blue, or custom (typically light blue for ESD visibility) |
Adhesive | Antistatic acrylic (permanent, low‑outgassing) |
Temperature range | 0°C to +60°C (operating) / -20°C to +80°C (storage) |
Standard sizes | Custom die‑cut from 5mm x 5mm to 150mm x 100mm |
Core diameter | 1 inch |
Print compatibility | Thermal transfer (resin or wax/resin recommended) |
Custom shapes, sequential barcodes, and pre‑printed ESD warning symbols available.
Key Features
- Static‑dissipative surface – Prevents triboelectric charging and safely dissipates static charges, protecting sensitive components.
- Antistatic adhesive – Specially formulated adhesive does not insulate or generate static; ensures safe contact with ESD‑sensitive surfaces.
- Low outgassing – Suitable for clean room environments (ISO Class 5–8) where ionic contamination must be minimized.
- High print quality – Smooth, matte surface accepts thermal transfer ribbons for sharp barcodes, 2D codes, and fine text.
- Durable polyester facestock – Resists tearing, scratching, and mild chemicals (alcohol, IPA) used in cleanroom wiping.

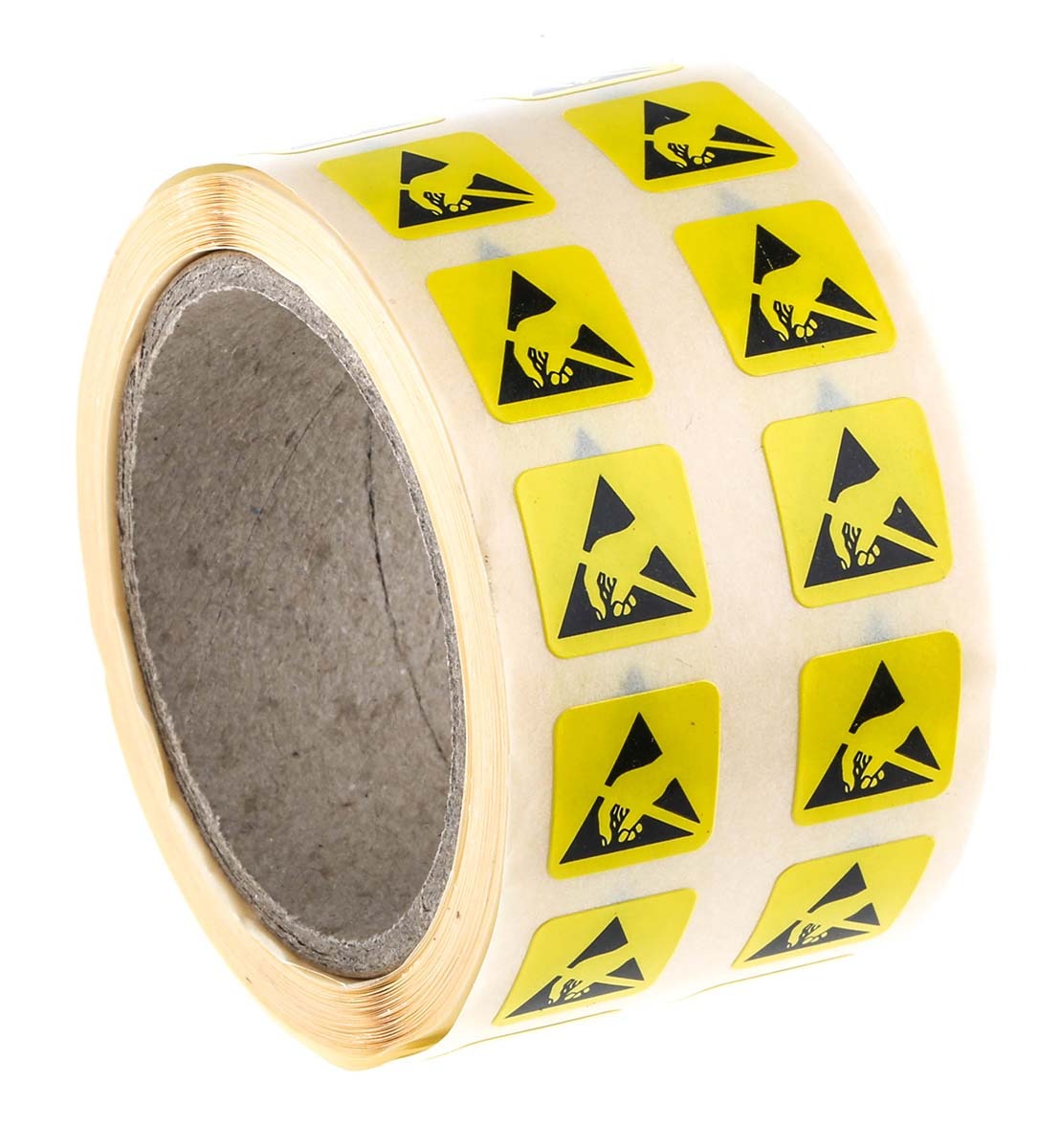

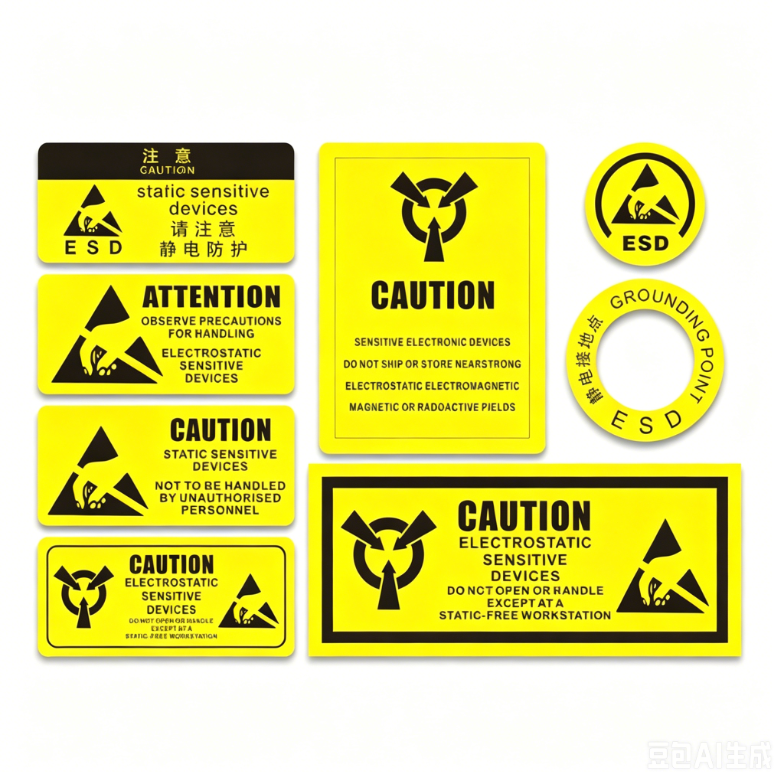

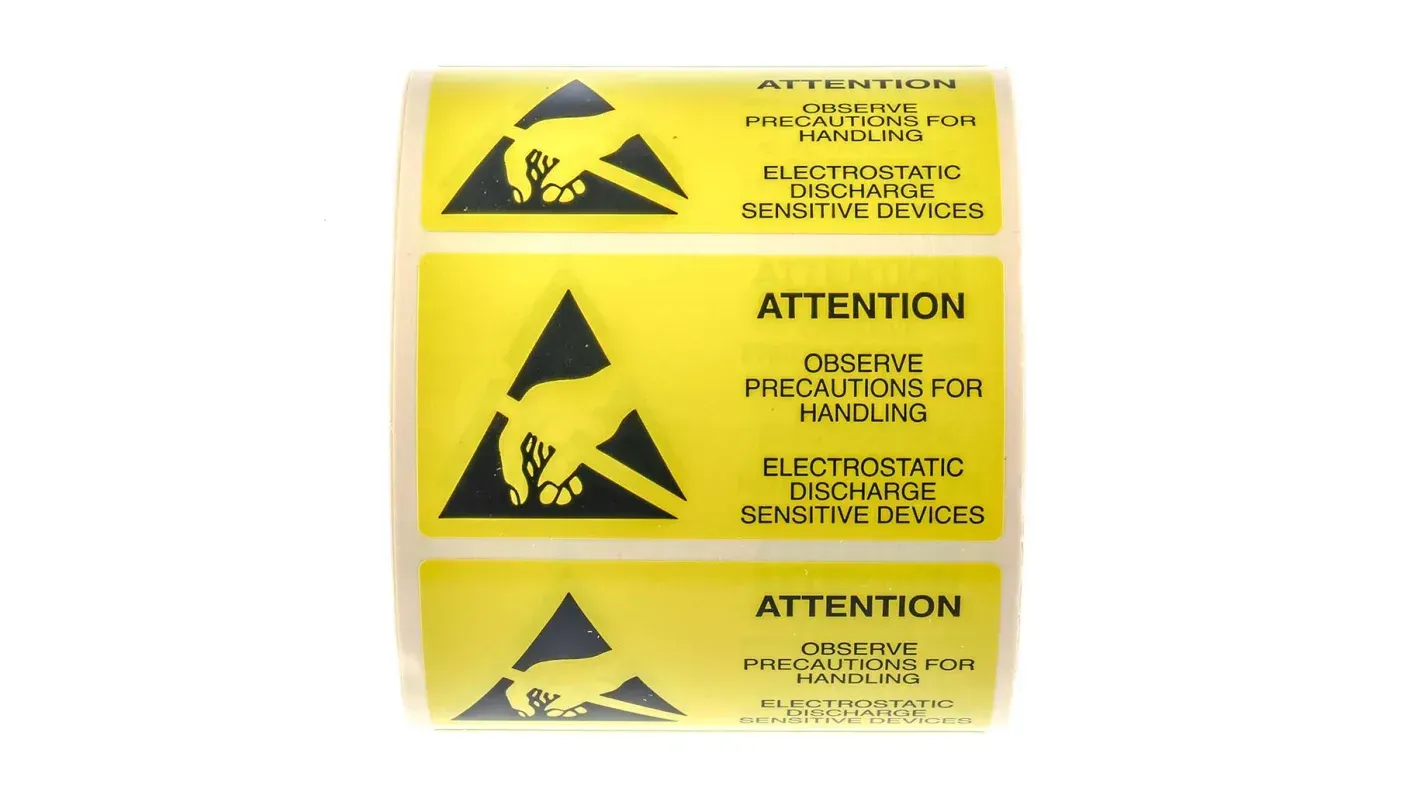

- ESD warning compliant – Can be pre‑printed with ESD susceptibility symbol (per ANSI/ESD S8.1) for hazard communication.
Applications
Use Anti-Static ESD Label for:
- PCB assembly & SMT lines – Work‑in‑progress labels on bare boards, solder paste stencils, and component reels.
- Electronics manufacturing – Asset labels on ESD‑sensitive equipment, workstations, and tooling.
- Clean rooms – Identification labels for enclosures, bins, and carts in ESD‑controlled environments.
- Hard drives & server assembly – Internal component labels in data storage devices where static discharge could cause data loss.
- Repair & service centers – Temporary labels on devices undergoing ESD‑safe repair procedures.
For extreme chemical resistance or high temperature, see our Chemical Resistant or High‑Temp PI labels – but note those are not ESD‑safe unless specified.
Printer & Ribbon Compatibility
Recommended ribbons:
- Resin ribbon – Best for durability and chemical resistance in cleanroom environments.
- Wax/Resin (semi‑synthetic) – Acceptable for less demanding indoor use (e.g., work‑in‑progress labels).
Compatible printers:
Most industrial thermal transfer printers from Zebra, Honeywell, Sato, TSC, Citizen.
Printer settings suggestion:
- Darkness: 20–25% for wax/resin, 25–30% for resin
- Speed: 3–5 inches per second (ips) for best results
💡 Tip: ESD labels are slightly more abrasive than standard PET – clean printhead more frequently.
How to Choose the Right Label Size & Quantity
- Size: Custom die‑cut to fit PCBs, component reels, or ESD workstation areas.
- Roll length: Typically 500–2000 labels per roll based on label size.
- Core: 1 inch (standard).
- Orientation: Inside‑out or outside‑out – we match your printer.
Ordering & Sample Information
- MOQ: 50 roll for standard blank labels; custom die‑cut shapes – MOQ 100 rolls.
- Free sample: 5–10 pieces available for testing. Request with your printer model, ribbon type, and cleanroom class.
- Custom printing: ESD symbol, barcodes, serial numbers – MOQ 1000 pcs.
- Lead time:
- Blank labels (stock sizes): 2–3 business days
- Custom die‑cut or printed: 7–10 business days
- Large volume (>500 rolls): 15–20 days
