Does Resin Ribbon Really Damage Printheads? – The Truth About Printhead Wear
Many users worry that resin ribbon damages printheads. Learn the truth about printhead wear, how to use resin ribbon safely, and what really causes damage.
Does Resin Ribbon Really Damage Printheads? – The Truth About Printhead Wear
🖨️ You’ve heard the rumour: “Resin ribbon destroys printheads.” And now you’re hesitating – should you switch to resin ribbon for your harsh‑environment labels, or stick with wax/resin and risk label failure?
This is one of the most common concerns we hear from customers. The short answer is:
Resin ribbon does NOT inherently damage printheads – but using it incorrectly can accelerate wear.
In this guide, I’ll explain:
- ✅ Why resin ribbon gets blamed for printhead damage.
- ✅ What actually causes printhead wear.
- ✅ How to use resin ribbon safely and extend printhead life.
- ✅ What information to send when ordering resin ribbon.
By the end, you’ll know exactly how to use resin ribbon without damaging your printer – and when to choose it over other options.
Why This Matters – The Resin Ribbon Dilemma
Resin ribbon is the most durable thermal transfer ribbon type. It is essential for:
- ✅ Printing on synthetic labels (PET, PI, PP, PE).
- ✅ Labels that need chemical resistance (acetone, MEK, toluene).
- ✅ High‑temperature applications (up to 150°C after printing).
- ✅ Outdoor and UV‑exposed labels.
- ✅ Cryogenic and low‑temperature labels (-196°C).
But resin ribbon requires higher print energy than wax or wax/resin. This means the printhead must run hotter and press harder – which can lead to faster wear if not managed properly.
The key question: Is the wear from resin ribbon itself, or from how it is used?
Key Factors That Affect Printhead Wear

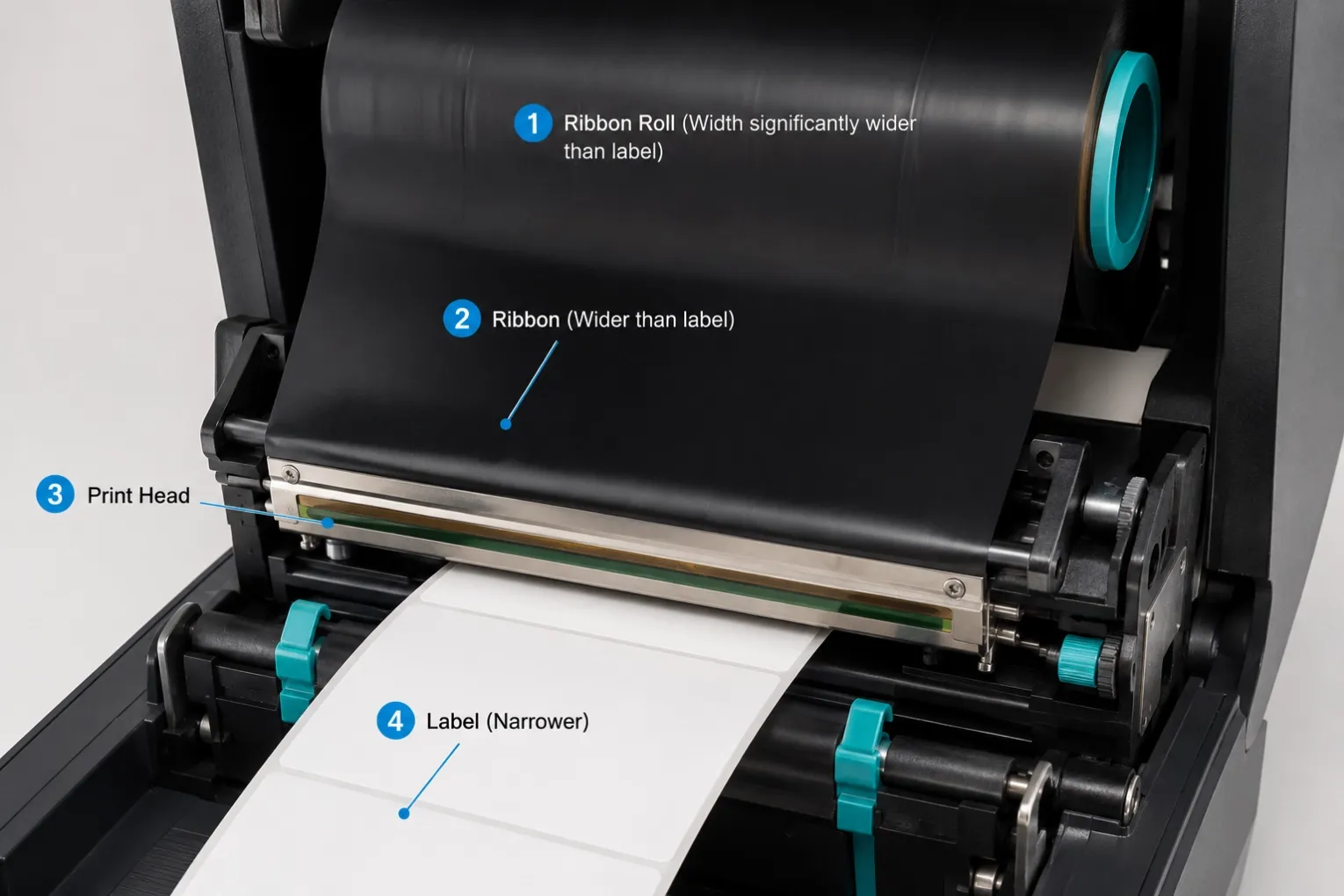

1. Ribbon Width vs Label Width 📏
Scenario | Effect on Printhead |
|---|---|
Ribbon is wider than label | ✅ Printhead is protected – ribbon cushions the printhead. |
Ribbon is narrower than label | ❌ Printhead directly contacts label surface – adhesive and dust cause abrasion. |
The rule: Ribbon width must be ≥ label width + 2–5mm.
Why: When the ribbon is narrower than the label, the printhead’s edges scrape directly against the label material. This is the #1 cause of printhead damage – far more than resin ribbon itself.
2. Printhead Pressure and Energy ⚡
Factor | Effect |
|---|---|
Darkness (energy) | Higher darkness = more heat = faster wear. |
Speed | Slower speed = more dwell time = more heat transfer. |
Pressure | Higher pressure = more friction = more wear. |
The rule: Use the lowest darkness and pressure that gives acceptable print quality. Resin ribbon requires 25–35% darkness (versus 15–20% for wax). Do not exceed the manufacturer’s recommended maximum.
Why: Running resin ribbon at wax‑level darkness (too low) causes poor transfer – users increase pressure to compensate, which accelerates wear.
3. Ribbon Coating Quality 🧪
Ribbon Type | Coating Consistency | Abrasiveness |
|---|---|---|
Genuine / high‑quality resin | Consistent, smooth | Low |
Cheap / counterfeit resin | Inconsistent, rough | High |
The rule: Always use high‑quality resin ribbon from a reputable supplier. Cheap ribbons often have poor coating uniformity – they can scratch printheads like sandpaper.
Why: Resin ribbon gets blamed for damage caused by cheap resin ribbon. Quality resin ribbon is formulated to minimise printhead wear.
4. Application Environment 🌡️
Condition | Effect |
|---|---|
Dusty environment | Particles create abrasive friction. |
High humidity | Residue can become sticky, increasing friction. |
Low humidity | Static increases, attracting dust. |
The rule: Keep printers covered when not in use. Clean printheads regularly (after every ribbon roll).
Why: Contamination (dust, adhesive residue) is a major wear factor – regardless of ribbon type.
5. Printhead Age and Condition 🔧
Factor | Effect |
|---|---|
New printhead | Resin ribbon wears it normally – will last 30–50 km. |
Old printhead (coating worn) | Resin ribbon accelerates failure – printhead was already near end of life. |
The rule: Replace printheads when they show signs of wear (white lines, uneven print). Resin ribbon will not “ruin” a healthy printhead – it will simply wear it at a normal rate.
Common Mistakes That Cause Printhead Damage ❌
Many users blame resin ribbon when the real cause is one of these mistakes:
Mistake | Real Cause of Damage |
|---|---|
“Resin ribbon destroyed my printhead.” | Ribbon was narrower than the label – printhead scraped label surface. |
“Resin ribbon caused white lines.” | Printhead was already worn – resin ribbon revealed existing damage. |
“Resin ribbon is too abrasive.” | Using cheap/counterfeit resin ribbon – not quality resin. |
“Resin ribbon runs too hot.” | Darkness and speed were set incorrectly – not a ribbon issue. |
“Resin ribbon leaves residue.” | Printhead was dirty – residue from previous ribbons burned on. |
✅ The truth: When used correctly – with correct width, proper settings, and quality material – resin ribbon does not damage printheads any more than wax/resin.
Recommended Solution – Safe Resin Ribbon Use
To use resin ribbon safely and extend printhead life:
✅ Choose the right ribbon width
- Ribbon must be wider than the label (minimum 2–5mm overhang on each side).
✅ Set correct printer parameters
- Darkness: 25–35% (test for your specific printer).
- Speed: 2–4 inches per second (ips).
- Pressure: Follow printer manufacturer’s recommendation.
✅ Use quality resin ribbon
- Choose resin ribbon from a reputable supplier with consistent coating.
✅ Clean printhead regularly
- Clean after every ribbon roll – use IPA (≥90%) and lint‑free swabs.
✅ Replace platen roller if worn
- A worn platen roller causes uneven pressure, increasing printhead wear.
What Information to Send Before Inquiry 📋
To get the right resin ribbon for your printer (and avoid damage), send us:
Information | Why It Matters |
|---|---|
Printer brand and model | Determines ribbon width, core size, and coating side. |
Label material | PET, PI, PP, PE, paper – affects ribbon formulation. |
Label width | To recommend ribbon width (≥ label width + 2–5mm). |
Application environment | Chemical exposure? Heat? Outdoor? Cryo? |
Current ribbon | What are you using now? Any issues? |
💡 Pro tip: Include a photo of your current printhead – we can assess wear condition and recommend next steps.
FAQ – Frequently Asked Questions
Q1: Does resin ribbon shorten printhead life more than wax or wax/resin?
A: Yes – resin ribbon requires higher energy, which generates more heat and friction. A typical printhead lasts 30–50 km with wax, 25–45 km with wax/resin, and 20–40 km with resin. However, the difference is smaller than the damage caused by incorrect ribbon width or poor maintenance. With proper setup, the extra wear is minimal and justified by resin’s superior durability.
Q2: Can I use resin ribbon on any printer?
A: Most industrial printers (Zebra ZT series, Honeywell PD/PM series, Sato CL/GL, TSC Alpha/MH) can run resin ribbon. Desktop printers may struggle – they often lack the energy and printhead pressure required. Check your printer manual or ask your supplier. If your desktop printer cannot run resin, consider upgrading or using a high‑performance wax/resin instead.
Q3: How can I tell if my printhead is worn from resin ribbon vs normal use?
A: Look for:
- White lines (burned‑out dots) – appear as vertical lines on printed labels.
- Uneven darkness – some areas lighter than others.

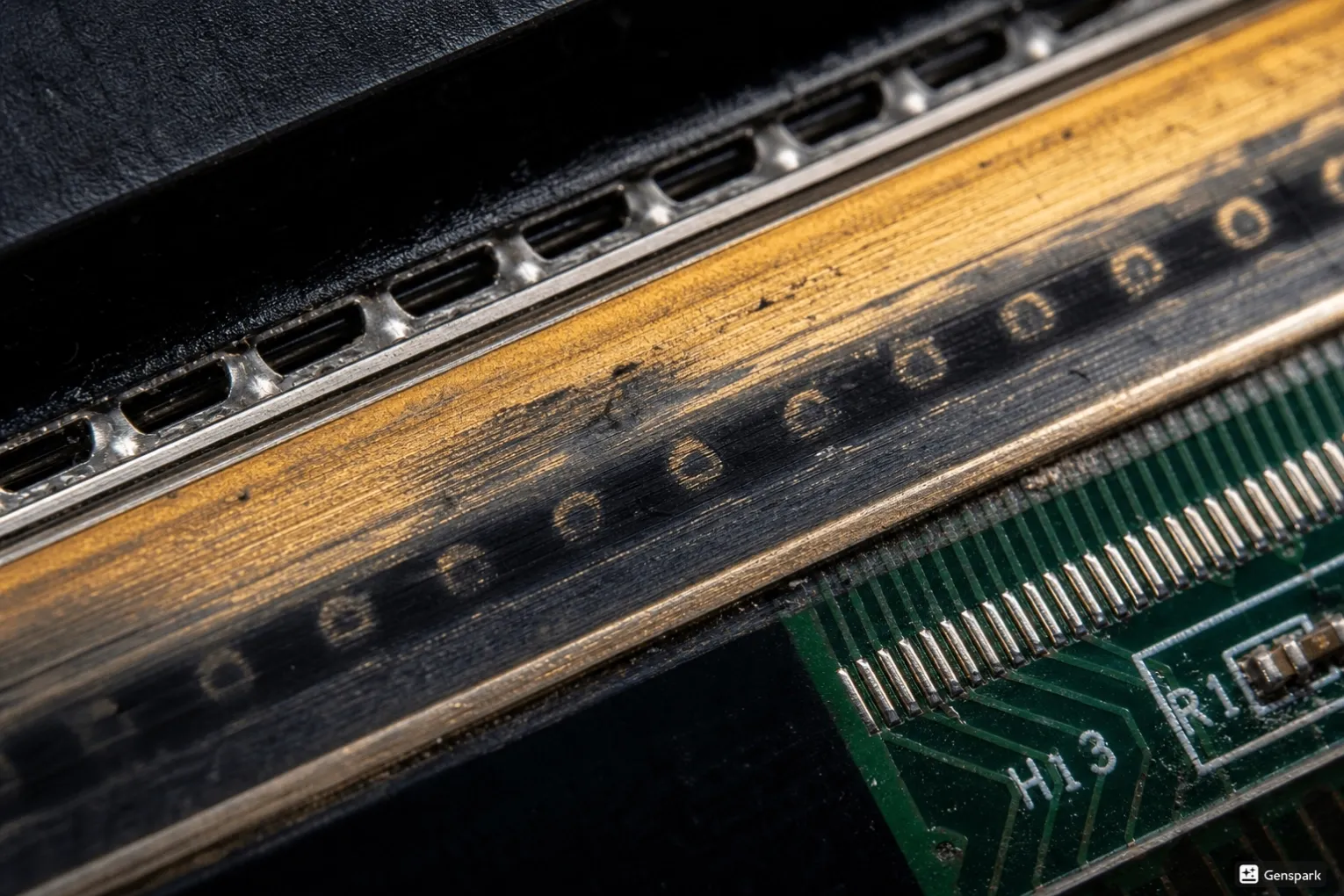

- Coating wear – visible dark line across the ceramic surface.
If these appear after switching to resin, the printhead may have already been near end‑of‑life. Resin ribbon often reveals existing wear that was not visible with lower‑energy wax ribbon.
Q4: Does resin ribbon require a different printer cleaning routine?
A: Yes – resin ribbon residue can be more stubborn than wax/resin. Clean after every ribbon roll (not every 2–3 rolls). Use ≥90% IPA and lint‑free swabs. Regular cleaning prevents residue build‑up, which can act as abrasive and accelerate wear.
Q5: Is it safe to use resin ribbon on an old printhead?
A: If the printhead is already worn (white lines, uneven print), resin ribbon may accelerate failure. It is better to replace the printhead first before switching to resin ribbon. A new printhead with resin ribbon will wear normally and last its full expected life.
Conclusion & Next Steps 🎯
Resin ribbon does NOT inherently damage printheads. The real causes of damage are:
- ❌ Ribbon narrower than label (edge contact with label surface).
- ❌ Incorrect printer settings (too high darkness/pressure).
- ❌ Cheap/low‑quality resin ribbon (abrasive coating).
- ❌ Poor maintenance (dirty printhead, worn platen roller).
When used correctly – with proper width, quality material, and regular cleaning – resin ribbon is a safe and essential tool for harsh‑environment labeling.
Need resin ribbon for your printer? We offer high‑quality resin ribbon with consistent coating and low abrasiveness. Send us your printer model and label width – we will recommend the right size and send a free sample for you to test.
